Setting Up Walmart

Setting Up Walmart


Required Parameters:

  • Client ID
  • Client Secret
  • Channel Type

Step-by-step guide

Walmart US Marketplace Instructions

  1. At the page linked here, select your specific Walmart account type and log in using your Seller login credentials: https://developer.walmart.com/#/generateKey

  2. Copy the displayed Client ID and Client Secret into Extensiv Integration Manager

    1. Make sure you are in the Oauth Access Token tab Walmart. If you do not see this tab, log out and make sure you log in and select US Marketplace.

  3. Leave the Channel Type field blank (under cart edit setup page of Integration Manager).

Walmart DSV and CA Marketplace Instructions

  1. To obtain your API credentials, in your Walmart account, please click on the gear icon  on the top right to open General Setting. Then click on the Consumer IDs & Private Keys tab under API section.

    If you do not see the API section, your account may have the wrong Role Type. Please contact the Walmart admin account owner to obtain API credentials.

  2. Click on Generate Key(or Regenerate Key) button to obtain your Private Key.


    Each time the Regenerate Key button is clicked, Walmart will deactivate your previous Private Key.

    However, your Consumer ID and Channel Type code remain unchanged.

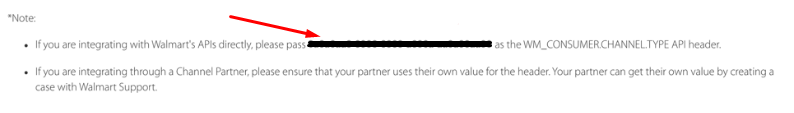

  3. You can find your Channel Type Code from the bottom of the API page.


  4. Copy and past your Private Key and Consumer ID, and Channel Type Code into the Integration Manager Cart Setup page. as follows:
    1. Place Consumer ID into the Consumer/Client ID field
    2. Place Private Key into the Client Secret field

  5. Select in Integration Manager if your connection is for Walmart Marketplace or DSV. If you need a connection to both systems, you will need to setup two Walmart carts in Integration Manager.
Product Upload to Walmart
Integration Manager does not provide the functionality to upload your new products to Walmart.com. To upload your products, you can use the Excel format provided by Walmart and send it to your Walmart rep. More info.

DSV Order Ship Node

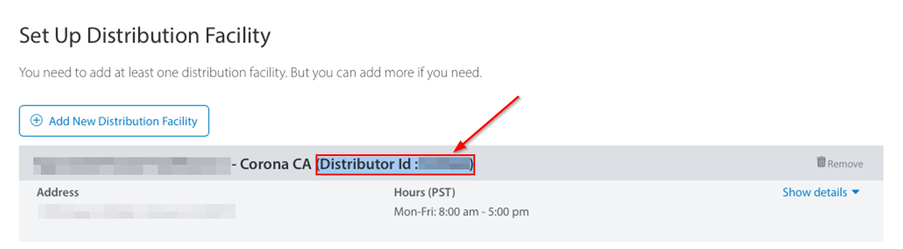

If you are connecting to Walmart DSV (not Marketplace), the connection will also require you to enter your "DSV Order Ship Node". This is found in your Walmart DSV account in the Distributor ID field.
