Setting Up Connected Business

Setting Up Connected Business


Required Parameters

Credentials from Connected Business that are needed to setup this connection in Extensiv Integration Manager.

  • API User
  • API Key

Step-by-step guide

  1. Run Connected Business Client Apps and Login using your User ID and Password

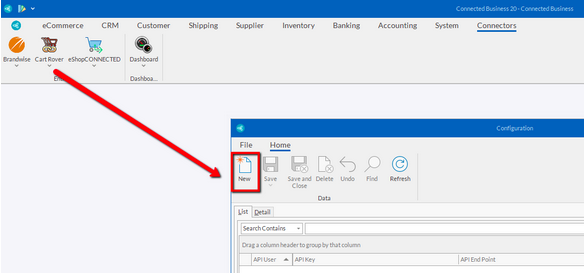

  2. Go to Connectors > Cart Rover > Tools > Configuration and click on “New”
  3. Login to Integration Manager, go to the WMS Setup tab (Or Sign up for a new Integration Manager account)
  4. Select Connected Business as your WMS if it is not already selected, then click Test WMS Connection

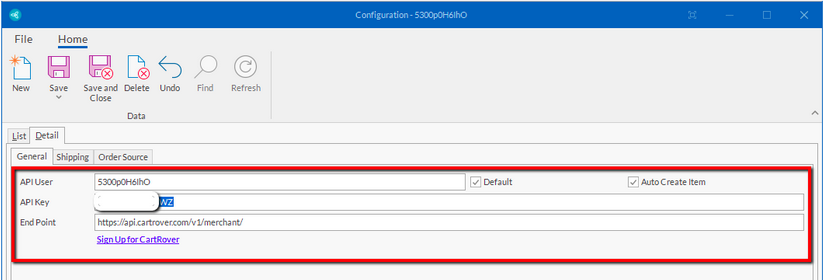

  5. Copy the API User and API Key from Integration Manager and enter it in Connected Business Cart Rover Configuration Setup. Then Save.

Setup a Job Plan for Connected Business to automatically download orders, update Inventory and order status

  1. In Connected Business Go to System > Job Manager > Manage Job Plan and click on “New”
  2. Enter the Job Description and other details

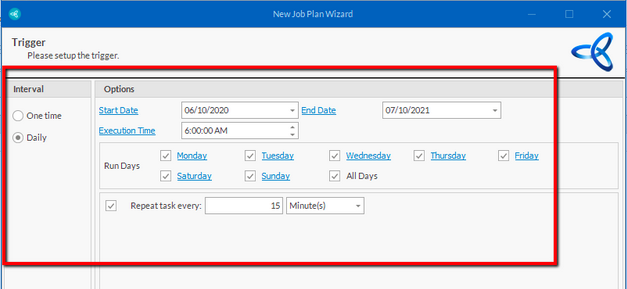

  3. Click on “Next” to continue and Setup the Trigger or schedule when it will be executed by job service
  4. Add “Integration Manager Order Manager” Job Item, this will automatically download the orders

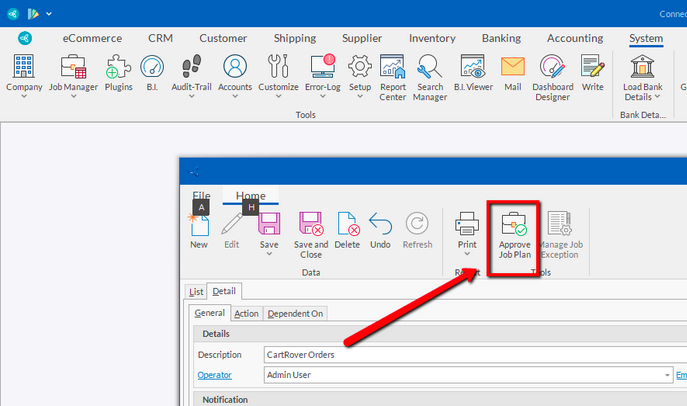

  5. After saving and finish the setup, approve the job plan.

To learn more about setting up job plans and job services in Connected Business, check the links below:

  1. Manage Job Plans
  2. Setting up Job Service
